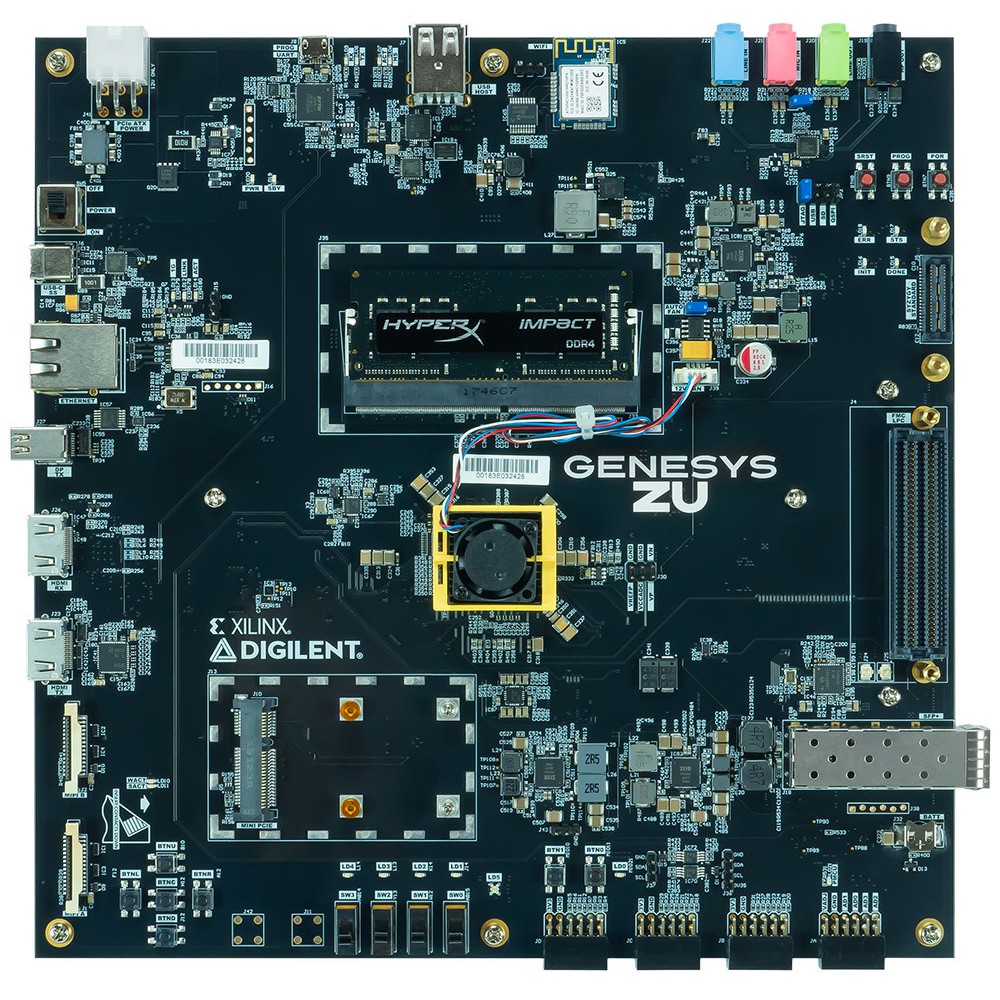

The Digilent Genesys ZU is a standalone Zynq UltraScale+ EG/EV MPSoC development board, designed to provide an ideal entry point by combining cost-effectiveness with powerful multimedia and network connectivity interfaces. The Genesys ZU supports multiple camera inputs, 4K video, 1G/10G Ethernet with high-memory bandwidth in a heavily Linux-based platform, serving as an advanced reVISION system. Two different specialized ports, including Pmod and high-speed SYZYGY-compliant expansion module ports for our new Zmods, enable flexible expansion and easy access to a wide ecosystem of add-on modules, perfect for silicon evaluation and rapid prototyping.

EG devices have the specialized processing elements needed to excel in next-generation wired and 5G wireless infrastructure, cloud computing, AI, and Aerospace and Defense applications. EV devices are designed with high definition video in mind, and are ideal for multimedia, automotive ADAS, surveillance, and other embedded vision applications.

Features:

256 Mbit QSPI Flash memory on-board

USB FTDI interface for programming and debugging

MicroSD card interface, supporting SDR104 mode

Board status and diagnostics using and on-board platform MCU

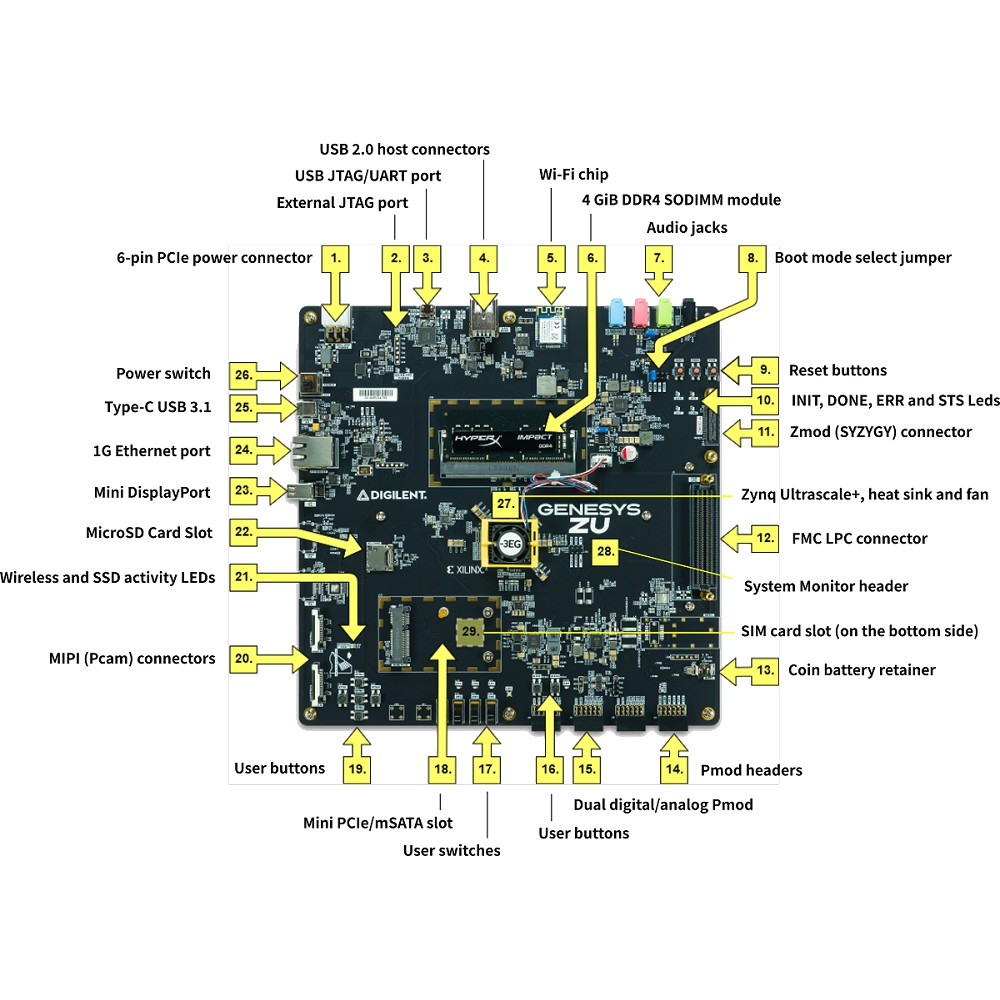

The Genesys ZU also offers an improved collection of ports and peripherals, including:

1x FMC expansion connector

1x FMC Gigabit expansion connector*

4x Pmod ports

1x SYZYGY port

1.2a Dual-Lane DisplayPort

2x Pcam Dual-Lane

Audio Codec

HDMI Sink and HDMI Source*

2.4 GHz on-board WiFi

1G w/IEEE 1588 Ethernet

WLAN/WWAN/LoRa: option - MiniPCIe

SFP+ 10G Ethernet*

USB Type-C 3.1 Gen1 Dual-Role Device

MiniPCIe / mSATA: dual slot, Half-/Full-size

USB 2.0 Host: 2 x Type-A

DDR4, 4GB, 1866 MT/s (2133 MT/sB), upgrade-able

ISSI 256 Mib SNOR Flash

104 MB/s SD

SSD option: mSATA

* ZU-5EV variant value where different

The Genesys ZU will be available in two variants with different UltraScale+ EG/EV MPSoC options and additional features for even more flexibility. (規格比較請參考圖片)
