🔎體積小、適合插麵包板，可用Arduino IDE開發。

🔎內建藍牙,WiFi

4 MB閃存

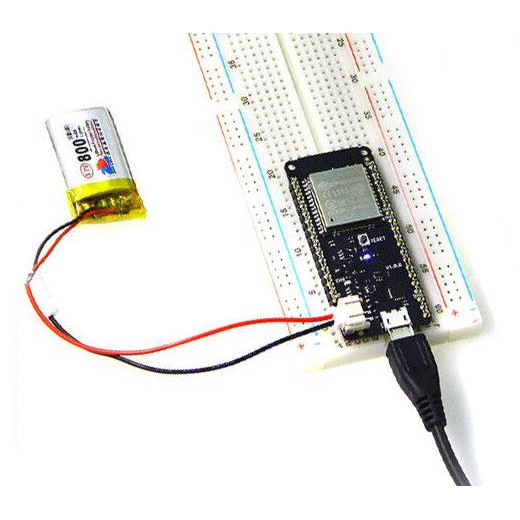

鋰電池插座，500mA大充電電流

Battery Connector: PH-2 2.0mm

ESP32 Module: ESP-WROOM-32 from Espressif.

240MHz dual core microprocessor equipped with

4MB SPI flash memory. Support up to 16MB of flash memory

Connectivity

WiFi 802.11 b / g / n.

Security WEP, WPA / WPA2 PSK / Enterprise.

Integrated cryptographic chip supporting AES / SHA2 / Elliptical Curve Cryptography / RSA-4096 algorithms

Maximum power for data transfer: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n

Sensitivity max. reception: -97 dBm

Bluetooth 4.0 LE

32 Inputs / Outputs

26x Digital I / O (3.3V). All outputs can be PWM

18x analog inputs

3x UART

3x SPI

2x I2S

2x DAC

2x I2C

Sleep Mode Consumption: 5 μA

Integrated sensors

Hall Effect

10x inputs for capacitive touch interface
